Laminate Test Cards – 4.0mm Polypropylene
$27.00
Standard 10mil 2 1/2″ x 4 1/4″ laminate cards – up to 4.0mm seed, P/N 254TCPY-0040

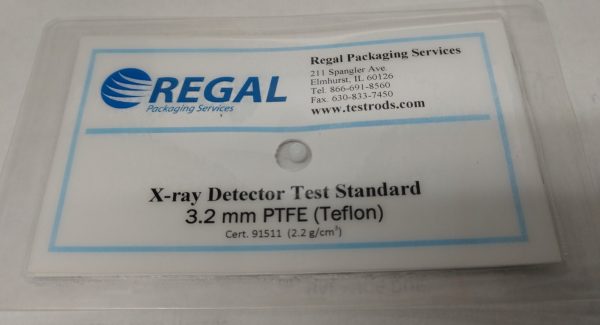

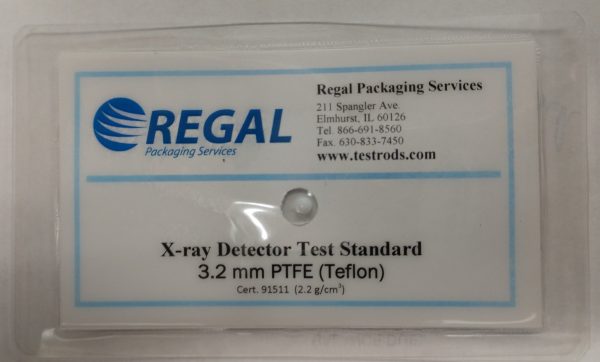

2.5″ x 4.25″ Testcard with Polypropylene Contaminant Type for X-Ray – ONLY 1 SIZE OFFERED FOR LAMINATE – pictured here as 3.2mm PTFE
For larger sizes, see the Thermoform cards. High Performance 2 1/2″ x 4 1/4″ Laminate Test Cards (PTFE) for Xray Machines. Color coded in Light Blue (for PTFE/Teflon). Constructed from Heavy Duty laminated material in ONLY 5 sizes as displayed in the dropdown menu. USDA & FDA approved. All products include complimentary certificates of conformity. Sold individually. Cards are also available with multiple sizes of metal and other contaminants – call for pricing on multi-cards. For larger sizes, see our Themoform Cards (also available in these sizes).
Validation testing of Xray Inspection Systems is a critical component of a HACCP plan and quality management system and typically requires Laminate Test Cards (PTFE) . Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards.
EPDM Rubber – 1.14 g/cm3
Buna Rubber – 1.33 g/cm3
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm3
PTFE (Teflon) – 2.2 g/cm3
Quartz – 2.2g/cm3
Soda-Lime Glass – 2.5 g/cm3
Aluminum – 2.7 g/cm3
Ceramic AL203 – 3.9 g/cm3
Ceramic ZrO2 – 6.0 g/cm3
Stainless Steel 316 – 8.0 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm3
Non-Ferrous (Brass) – 8.48 g/cm3
| Weight | 0.0625 lbs |
|---|---|
| Dimensions | 2.5 × 4.25 × 0.5 in |
| Size | 4.0mm Only |
