Laminate Test Cards – Soda-Lime Glass / Aluminum / Ceramic

$27.00$31.00

Standard 10mil 2 1/2″ x 4 1/4″ laminate cards – up to 4.0mm seed

Description

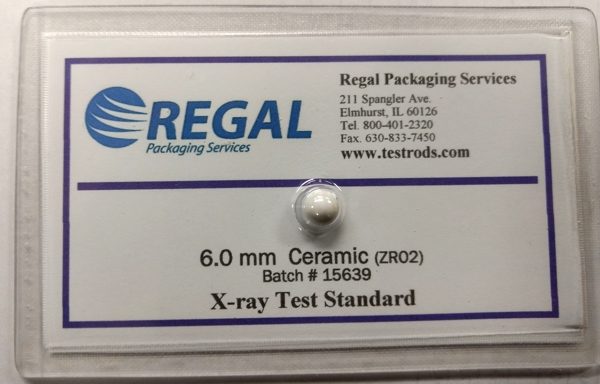

2.5″ x 4.25″ Testcard with Soda Lime Glass, Ceramic (ZrO2) OR Aluminum

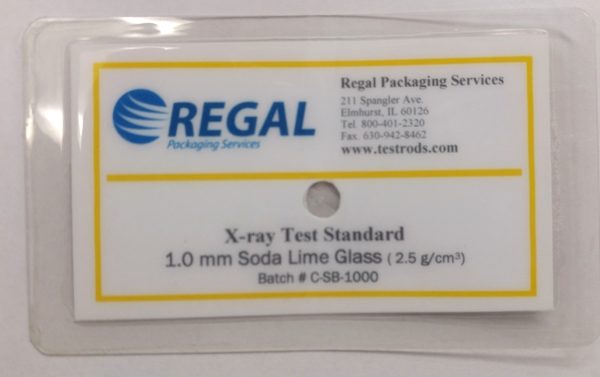

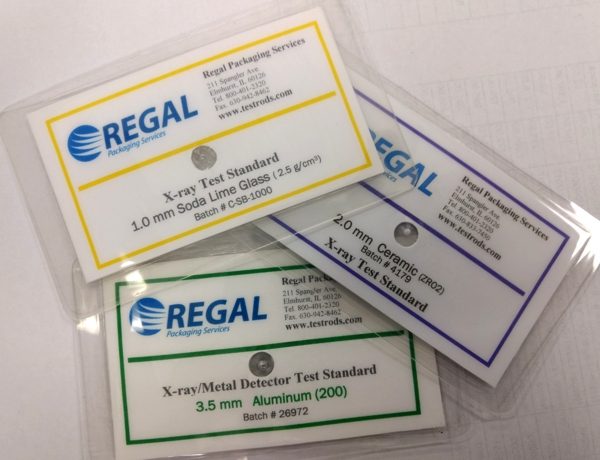

High Performance 2 1/2″ x 4 1/4″ Laminate Test Cards – Xray Machines. Color coded in Yellow (for Soda-Lime Glass), Green (for Aluminum, not shown) and Purple (for Ceramic, not shown). Constructed from Heavy Duty laminated material in .5mm increments ONLY from sizes 1.0mm to 4.0mm, USDA & FDA approved. All products include complimentary certificates of conformity.  Sold individually.  Cards are also available with multiple sizes of metal and other contaminants – call for pricing on multi-cards. For larger sizes, see our Acetal Copolymer or Themoform Cards with Aluminum or Soda-Lime Glass format cards (also available in these sizes).

Validation testing of Xray Inspection Systems is a critical component of a HACCP plan and quality management system. This typically requires Laminate Test Cards – Xray.  Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards.

Densities:

Polypropylene – 0.9 g/cm3
Nylon – 1.1 g/cm3
EPDM Rubber – 1.14 g/cm3
Buna Rubber – 1.33 g/cm3
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm3
PTFE (Teflon) – 2.2 g/cm3
Quartz – 2.2g/cm3
Soda-Lime Glass – 2.5 g/cm3
Aluminum – 2.7 g/cm3
Ceramic AL203 – 3.9 g/cm3
Ceramic ZrO2 – 6.0 g/cm3
Stainless Steel 316 – 8.0 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm3
Non-Ferrous (Brass) – 8.48 g/cm3



Additional information
Weight 0.0625 lbs
Dimensions 2.5 × 4.25 × 0.5 in
Contaminant Type

Aluminum, Glass, Ceramic ZRO2, Ceramic AL2O3

Contaminant Size

1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm
