Acetal Test Cards – Soda-Lime Glass

$27.00

Standard 2 1/8″ x 3 3/8″ Acetal Tests Cards (same material as our Testrods) with Soda-Lime Glass

Description

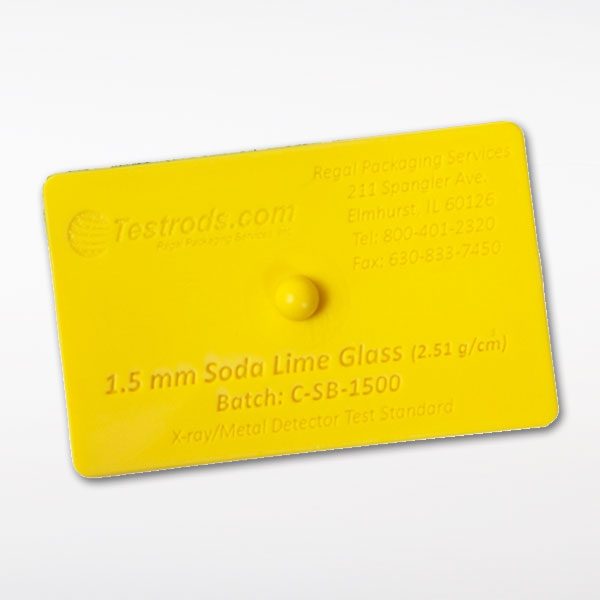

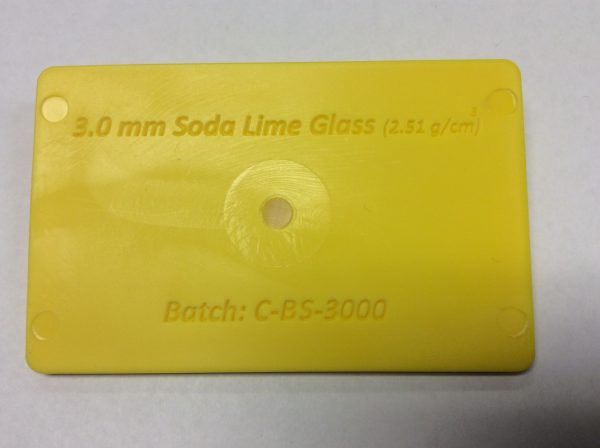

High Performance 2 1/8″ x 3 3/8″ Acetal Test Card – Soda-Lime Glass. Color coded in Yellow (for SLG).  Hard Plastic Cards – for X-ray Inspection are constructed from indestructible solid acetal copolymer material and designed to hold up to 8.0mm test standard, USDA & FDA approved. All products include complimentary certificates of conformity. Sizes up to 8.0mm.  Hard Plastic Test Cards – Soda-Lime Glass sold individually.  See also our laminate and thermoform cards.

Validation testing of Metal Detectors and X-ray Inspection Systems is a critical component of a HACCP plan and quality management system. Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards.  Testrods is a division of Regal Packaging Services.  Hard Plastic Test Cards – Ceramic are made from Acetal Copolymer.
Density:
Soda-Lime Glass – 2.5 g/cm3
Compared to:

Polypropylene – 0.9 g/cm3
Nylon – 1.1 g/cm3
EPDM Rubber – 1.14 g/cm3
Buna Rubber – 1.33 g/cm3
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm3
PTFE (Teflon) – 2.2 g/cm3
Quartz – 2.2g/cm3
Aluminum – 2.7 g/cm3
Ceramic AL203 – 3.9 g/cm3
Ceramic ZrO2 – 6.0 g/cm3
Stainless Steel 316 – 8.0 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm3
Non-Ferrous (Brass) – 8.48 g/cm3

Additional information
Weight 0.0625 lbs
Dimensions 2 × 2 × 0.5 in
Glass Ball Size

1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm
