Acetal Test Cards – Ceramic ZRO2 or AL2O3

$27.00

Standard 2 1/8″ x 3 3/8″ Acetal Tests Cards (same material as our Testrods) Ceramic AL203 and ZrO2

SKU: N/A Category: Tags:
Description

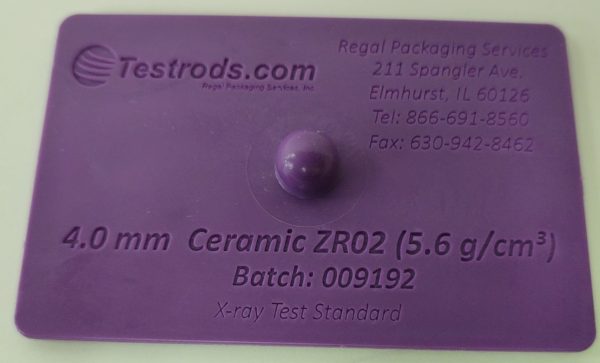

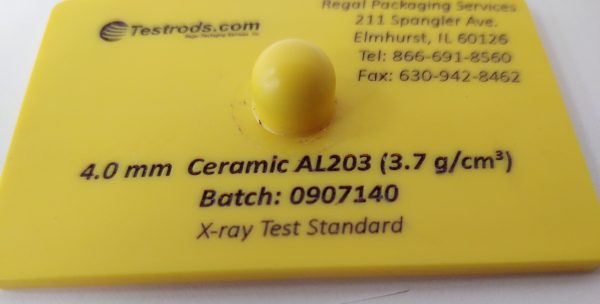

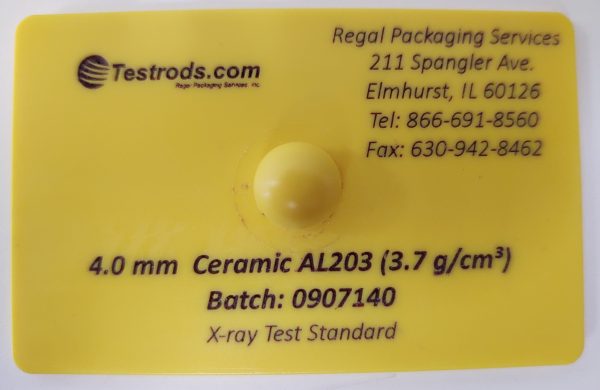

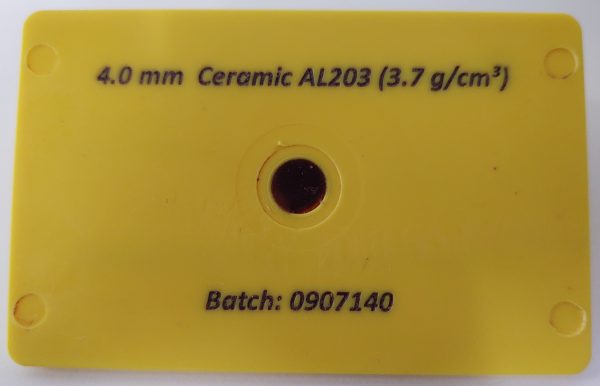

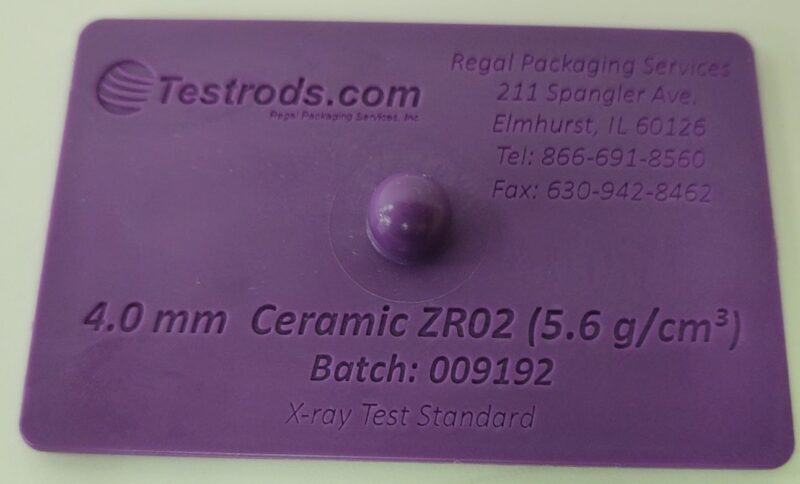

High Performance 2 1/8″ x 3 3/8″ Acetal/Hard Plastic Test Cards – Ceramic (ZrO2 and AL203). Color coded in Purple and/or Yellow (for Ceramic). Constructed from indestructible solid acetal copolymer material and designed to hold up to 8.0mm test standard, USDA & FDA approved. All products include complimentary certificates of conformity. Sizes up to 8.0mm.  Hard Plastic Test Cards – Ceramic sold individually.  See also our laminate and thermoform cards.

Validation testing of Metal Detectors and X-ray Inspection Systems is a critical component of a HACCP plan and quality management system. Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards. Testrods is a division of Regal Packaging Services.



Density:
Ceramic AL203 – 3.7 g/cm3
Ceramic ZR02 – 5.6 g/cm3
Compared to:
Polypropylene – 0.9 g/cm3
Nylon – 1.1 g/cm3
EPDM Rubber – 1.14 g/cm3
Buna Rubber – 1.33 g/cm3
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm3
PTFE (Teflon) – 2.2 g/cm3
Quartz – 2.2g/cm3
Soda-Lime Glass – 2.5 g/cm3
Aluminum – 2.7 g/cm3
Stainless Steel 316 – 8.0 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm3
Non-Ferrous (Brass) – 8.48 g/cm3
Additional information
Weight 0.0625 lbs
Dimensions 3.375 × 2.125 × .25 in
Ceramic Contaminant Type

AL2O3, ZRO2
Ceramic Contaminant Size

1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.5mm
